Cummins QSB7 engine
Runs on standard diesel and automatically reduces rpm when no hydraulic demand is detected.
Heavy-duty hydraulic excavator 933EHD
An easy-to-operate, high-productivity, low-maintenance heavy-duty excavator with six IPC work modes.
- Operating weight
- 33,600 – 34,000kg
- Gross power
- 169kW
- Standard bucket
- 1.88m³
- Digging reach
- 10,250mm
Overview
Built for heavy duty.
The 933EHD is an easy-to-operate, high-productivity, low-maintenance, heavy-duty hydraulic excavator.
- Engine
- Cummins QSB7
- Emission
- Tier 3
- Bucket performance
- 1.4 – 1.88 m³
IPC — Intelligent Power Control
LiuGong-patented system integrating hydraulic, mechanical and electronic systems.
Hydraulic system
Main pumps total flow of 532 L/min and main relief pressure of 34.3 MPa.
Working range
How far the 933EHD reaches.
6,200 mm boom and 2,600 mm arm.
- Max. digging reach on ground
- 10,032 mm
- Max. digging depth, 2.44 m (8′) level
- 6,590 mm
- Min. front swing radius
- 4,040 mm
Max. digging reach10,250mm
Max. cutting height10,007mm
Max. dumping height7,086mm
Max. digging depth6,825mm
Specifications
Key specifications.
- Operating weight
- 33,600 – 34,000 kg
- Engine
- Cummins QSB7
- Gross power
- 169 kW (227 hp) @ 2,050 rpm
- Net power
- 156 kW (212 hp) @ 2,050 rpm
- Standard bucket capacity
- 1.88 m³
- Arm digging force (power boost)
- 165 kN
- Main pumps total flow
- 532 L/min
- Relief pressure, main
- 34.3 MPa
Applications
01/ 02
Where the 933EHD works.

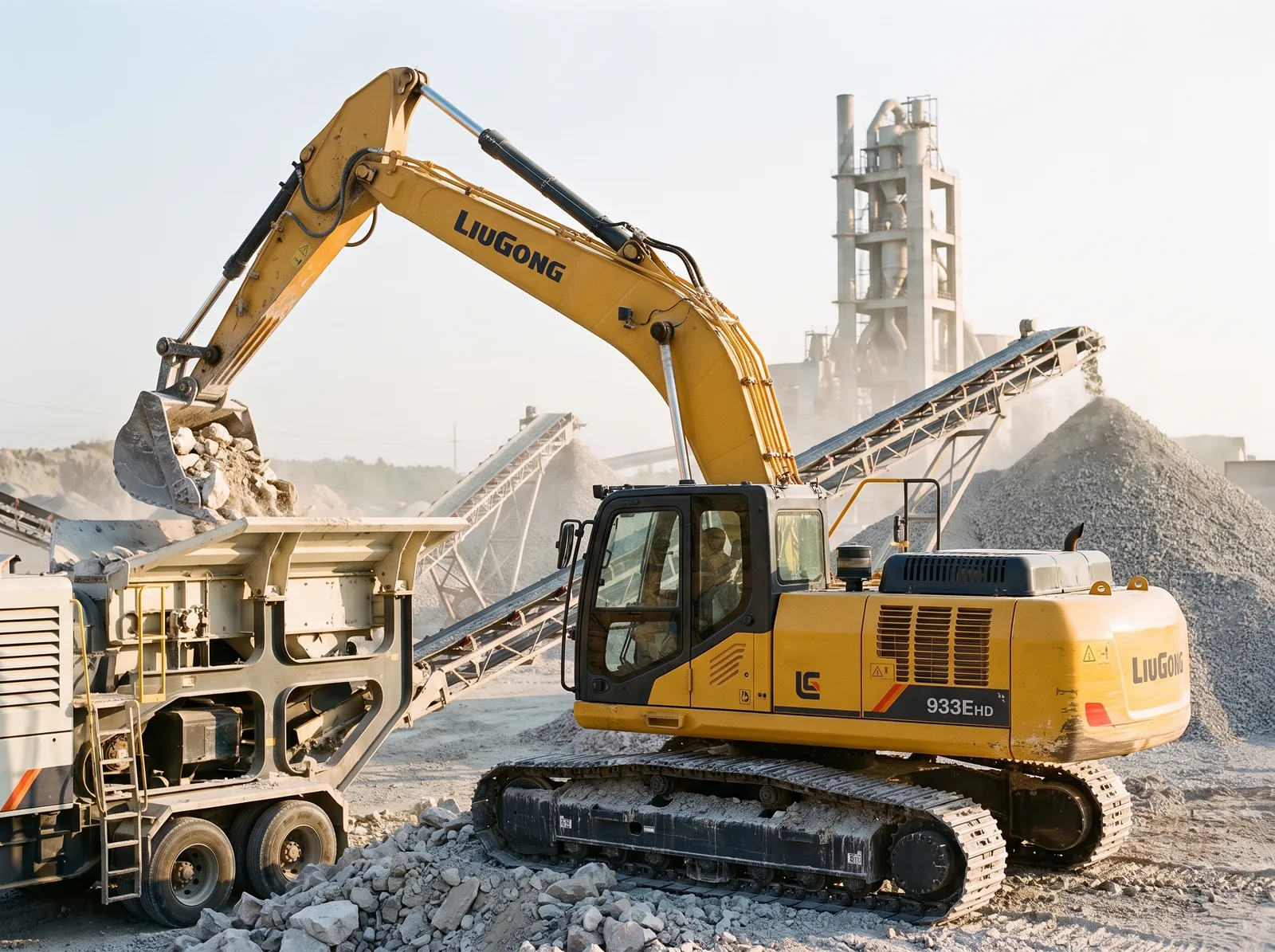

A 1.88 m³ bucket to keep the crusher fed without pauses.
Compare
Comparison.
The 933EHD beside other LiuGong models in the same line, with the figures LiuGong publishes for each one. Where the official page does not publish a figure, a dash is shown.
 | ||||||
|---|---|---|---|---|---|---|
| Operating weight | 21,500 kg | 22,000 kg | 31,800 – 32,900 kg | 33,600 – 34,000 kg | 35,000 kg | 42,000 kg |
| Power (kW) | 112 – 124 kW | 112 kW | 169 kW | 169 kW | 186 kW | 214 kW |
| Bucket | 0.9/0.95/1.0/1.2 m³ | 0.9 / 0.95 / 1.0 / 1.1 / 1.2 m³ | 1.4 / 1.6 m³ | 1.88 m³ | 1.6 / 1.9 m³ | 2.4 m³ |
