Cummins QSB7 engine
169 kW (227 hp / 230 ps) at 2,050 rpm, Tier 3.

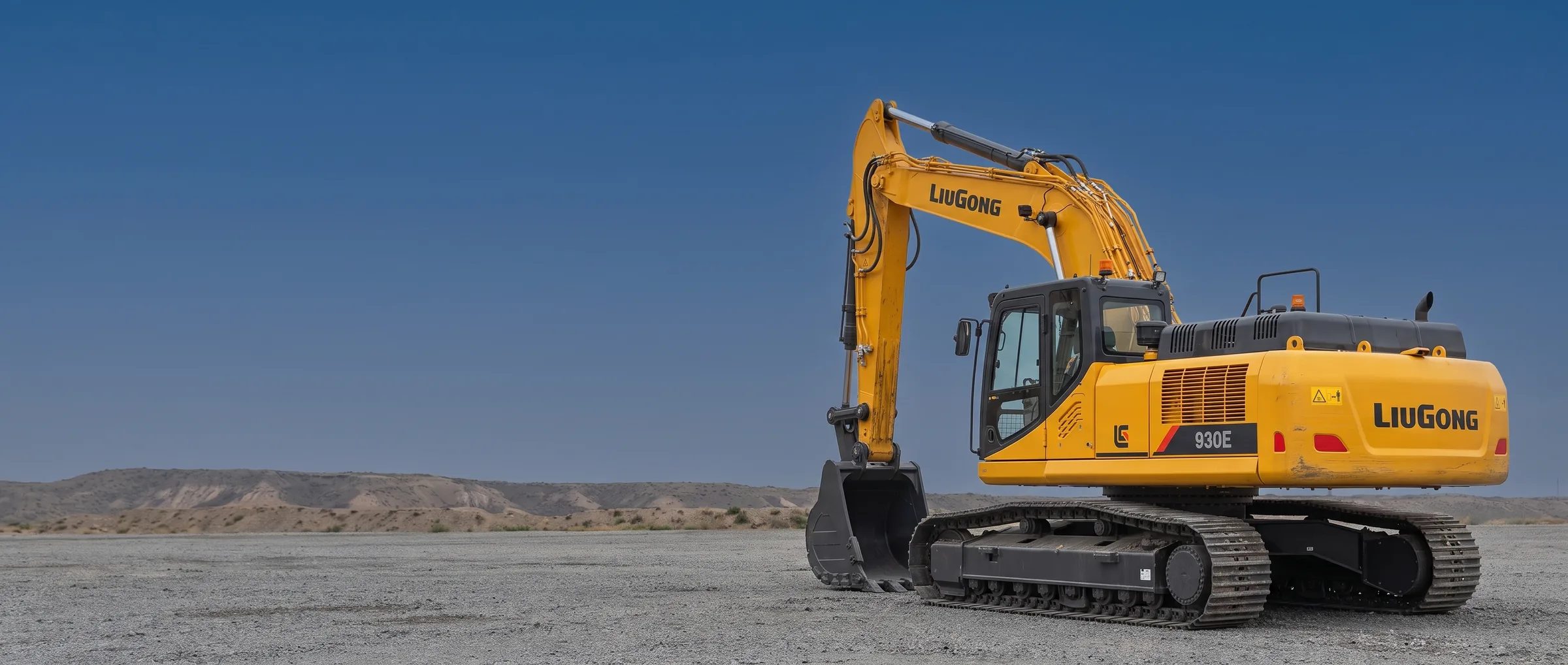

Hydraulic excavator 930E
A reinforced undercarriage, ROPS/FOPS protection and a bigger E-series cab glass area in a 32-tonne machine.
- Operating weight
- 31,800 – 32,900kg
- Engine power
- 169kW
- Bucket
- 1.4 / 1.6m³
- Digging reach
- 10,653mm
Overview
Built to keep working.
Heavy-duty service rollers, a reinforced carrier frame and optional full track guarding keep the undercarriage intact and the machine earning all day long.
- Engine model
- Cummins QSB7
- Emission
- Tier 3
- Bucket
- 1.4 / 1.6 m³
Operator protection
Roll-over and falling-object protective structures protect the operator in the toughest environments.
Cab visibility
The E-series cab glass area is 15% larger than on the previous model, combined with a rear-view camera.
Working range
How far the 930E reaches.
6,200 mm boom and 3,050 mm arm.
- Digging reach on ground
- 10,453 mm
- Vertical wall digging depth
- 6,216 mm
- Minimum front swing radius
- 4,040 mm
Max. digging reach10,653mm
Max. cutting height10,300mm
Max. dumping height7,265mm
Max. digging depth7,300mm
Specifications
Key specifications.
- Operating weight
- 31,800 – 32,900 kg
- Engine model
- Cummins QSB7
- Engine power
- 169 kW (227 hp / 230 ps) @ 2,050 rpm
- Bucket capacity
- 1.4 / 1.6 m³
- Bucket breakout force
- 203 kN
- Arm breakout force
- 149 kN
- System maximum flow
- 2 × 266 L/min
- System pressure
- 34.3 MPa

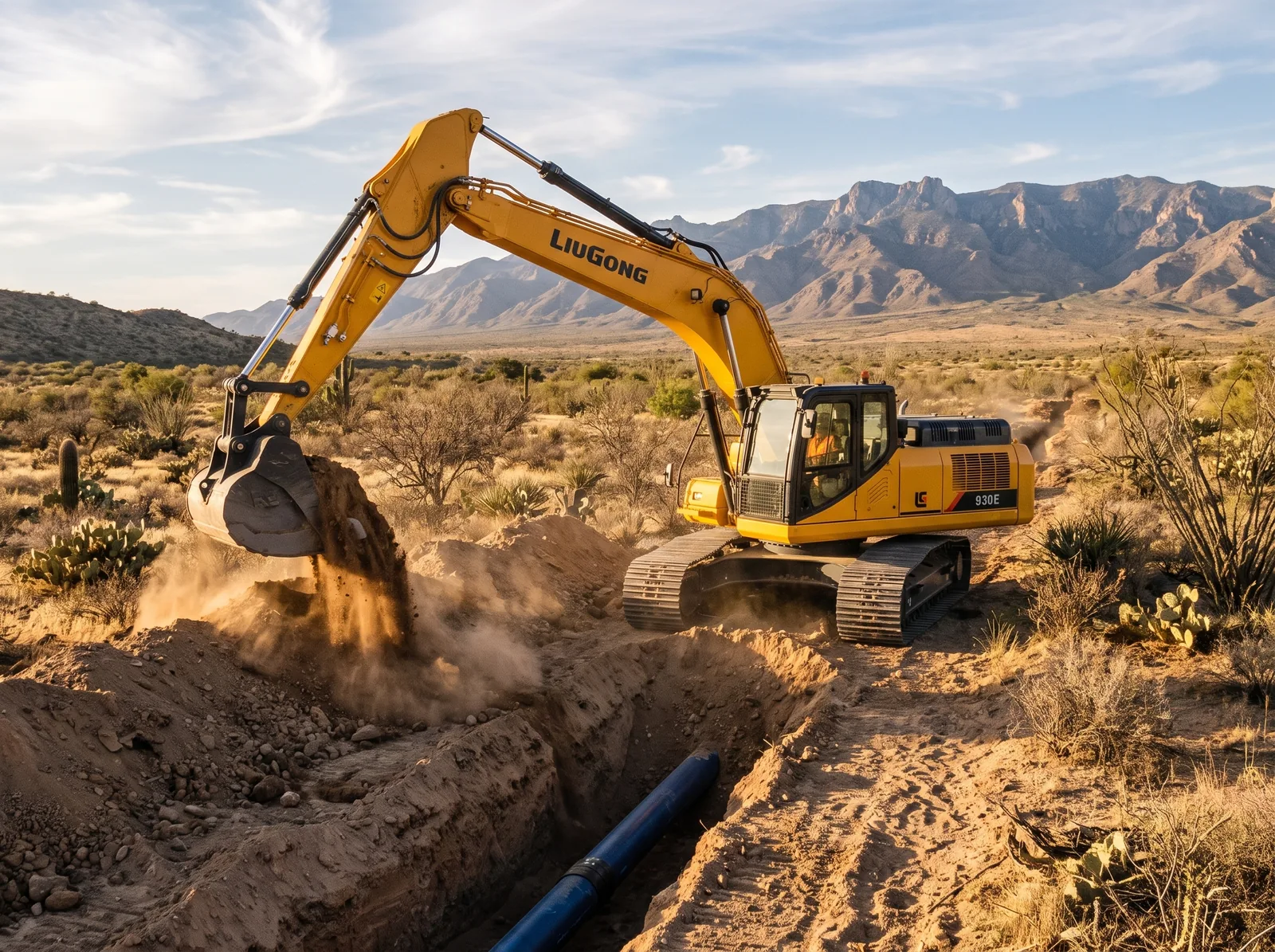

Applications
01/ 02
Where the 930E works.

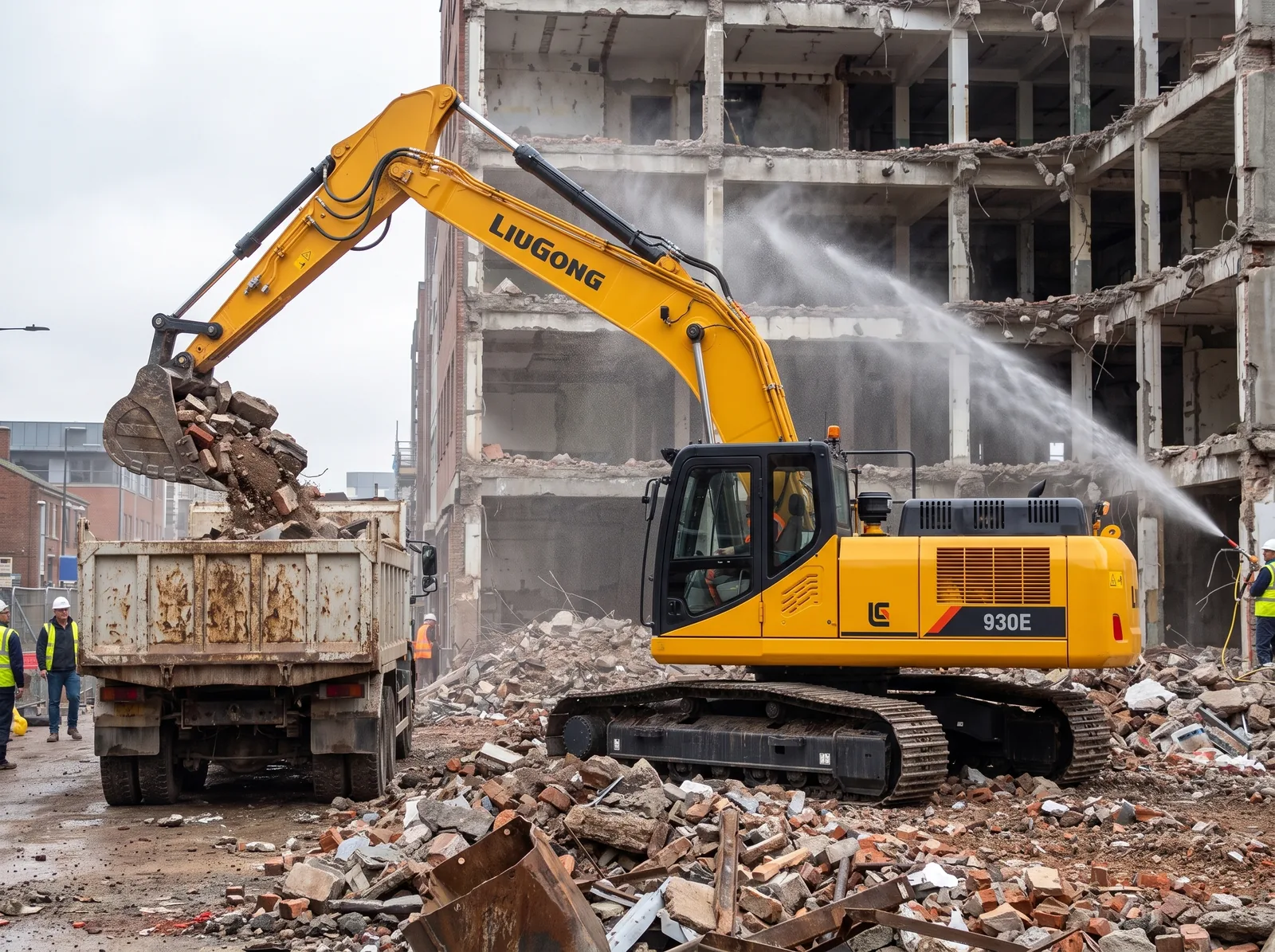

203 kN at the bucket to load broken concrete and rubble.
Compare
Comparison.
The 930E beside other LiuGong models in the same line, with the figures LiuGong publishes for each one. Where the official page does not publish a figure, a dash is shown.
 | ||||||
|---|---|---|---|---|---|---|
| Operating weight | 21,500 kg | 22,000 kg | 31,800 – 32,900 kg | 33,600 – 34,000 kg | 35,000 kg | 42,000 kg |
| Power (kW) | 112 – 124 kW | 112 kW | 169 kW | 169 kW | 186 kW | 214 kW |
| Bucket | 0.9/0.95/1.0/1.2 m³ | 0.9 / 0.95 / 1.0 / 1.1 / 1.2 m³ | 1.4 / 1.6 m³ | 1.88 m³ | 1.6 / 1.9 m³ | 2.4 m³ |
