Yanmar engine
Equipped with a Yanmar engine with strong power and large power output for its tonnage.

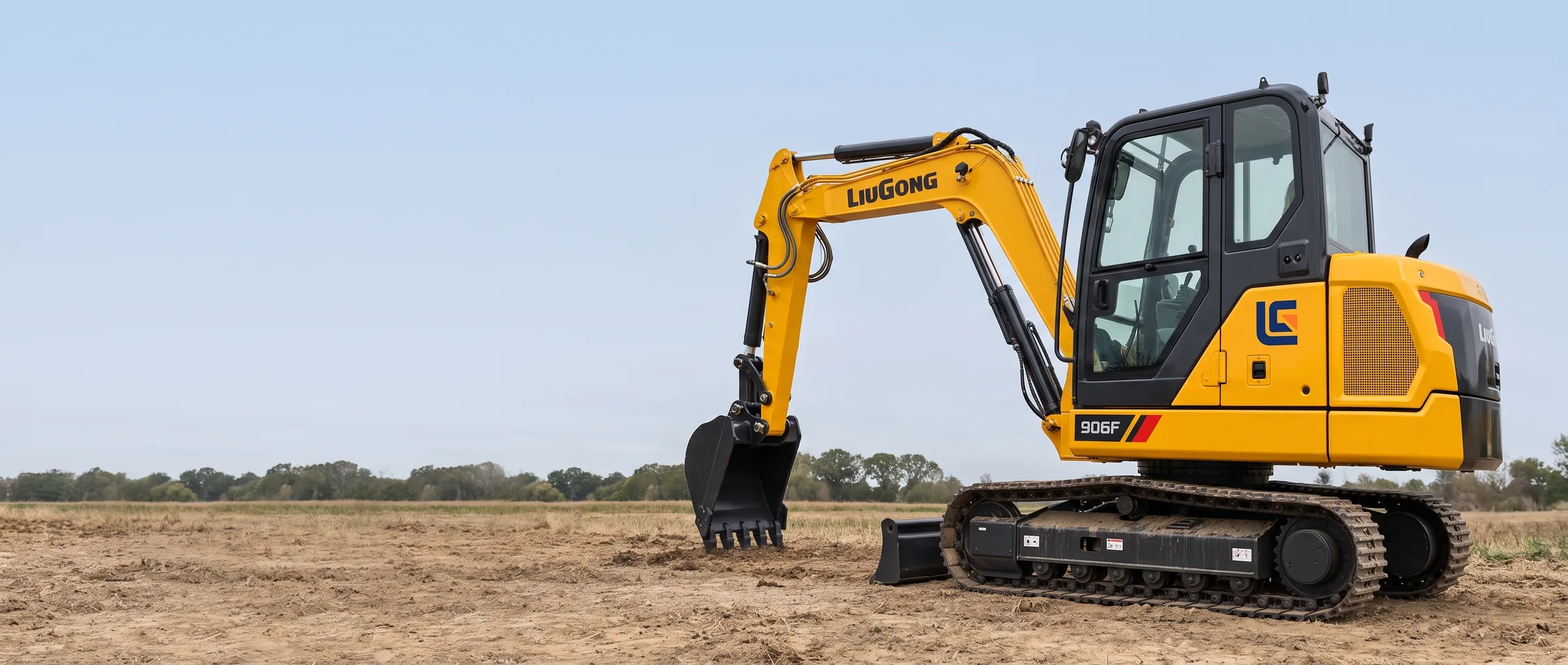

Compact hydraulic excavator 906F

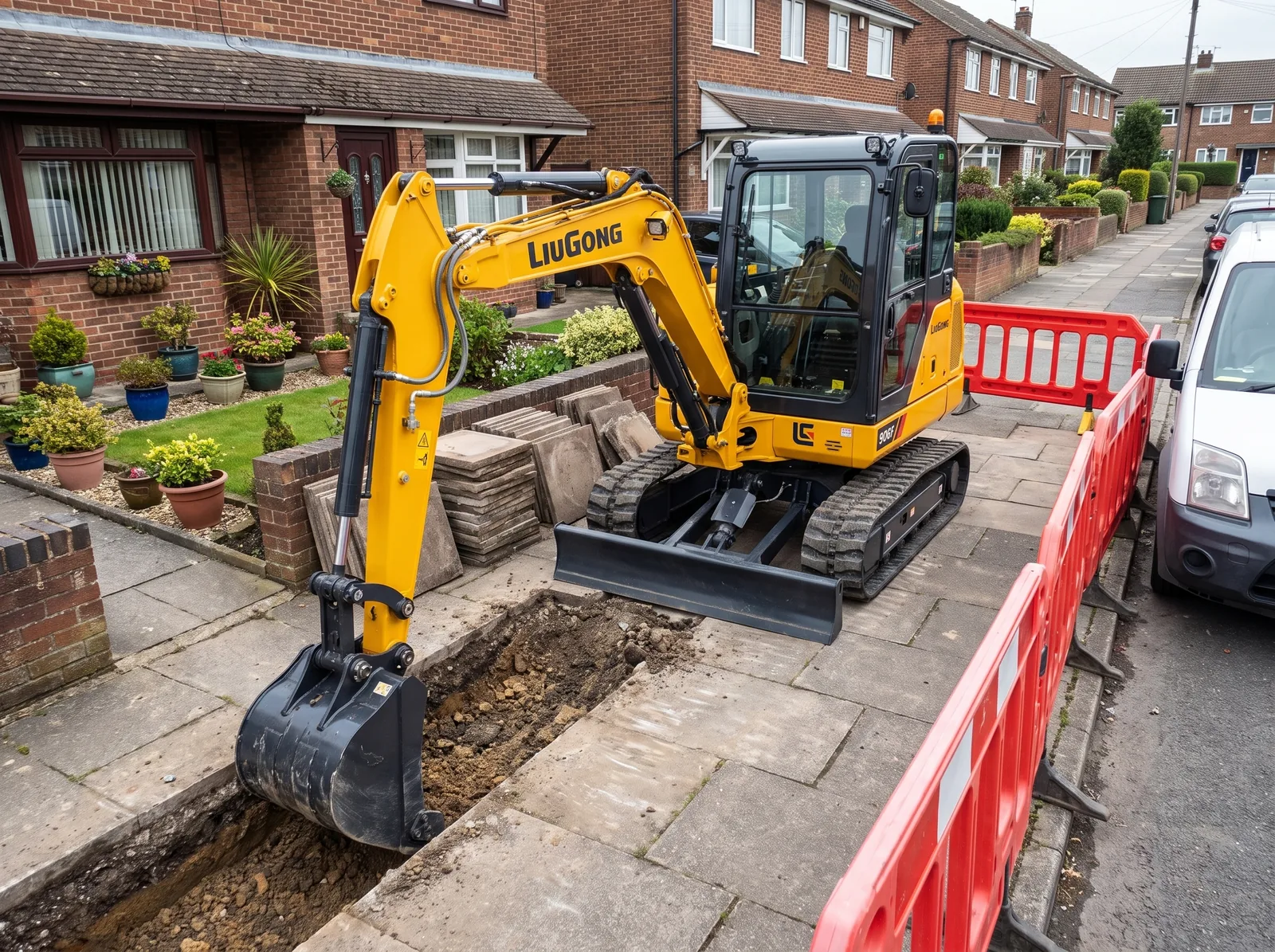

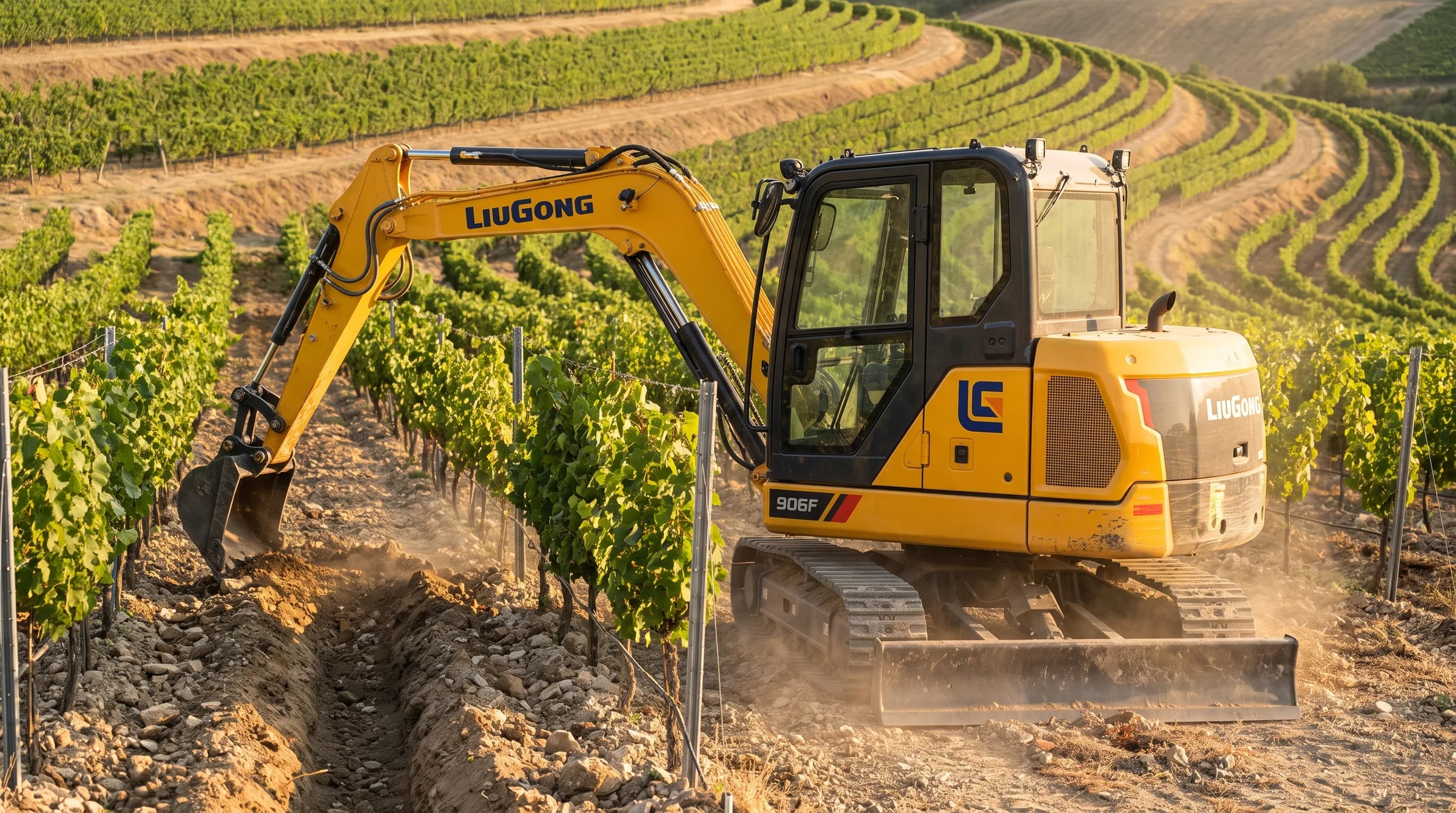

A compact excavator for farms, orchards and utility work, light enough to work between rows and along pavements.
- Operating weight
- 5,900kg
- Engine power
- 35.9kW
- Bucket
- 0.21m³
- Digging reach
- 6,180mm
Overview
Compact for farm and town.
Yanmar power, on-demand hydraulics and one-stop maintenance points in a 5,900 kg machine.
- Engine model
- Yanmar 4TNV94L-ZCWCLY
- Emission
- China Stage 4
- Bucket
- 0.21 m³
Main pump on demand
The main pump displacement is supplied to the system on demand and standby is automatically reduced.
Centralised maintenance
Air filter, oil filter, diesel filter, antifreeze and lubrication points are laid out together for one-stop inspection.
Working range
How far the 906F reaches.
3,000 mm boom and 1,600 mm arm.
- Digging reach on ground
- 6,050 mm
- Vertical wall digging depth
- 3,020 mm
- Minimum front swing radius
- 2,450 mm
Max. digging reach6,180mm
Max. cutting height5,730mm
Max. digging depth3,770mm
Specifications
Key specifications.
- Operating weight
- 5,900 kg
- Engine model
- Yanmar 4TNV94L-ZCWCLY
- Engine power
- 35.9 kW (48 hp / 49 ps) @ 2,000 rpm
- Bucket capacity
- 0.21 m³
- Bucket breakout force
- 41 kN
- Arm breakout force
- 31 kN
- System maximum flow
- 142.8 L/min
- System pressure
- 25 MPa
Applications
01/ 02

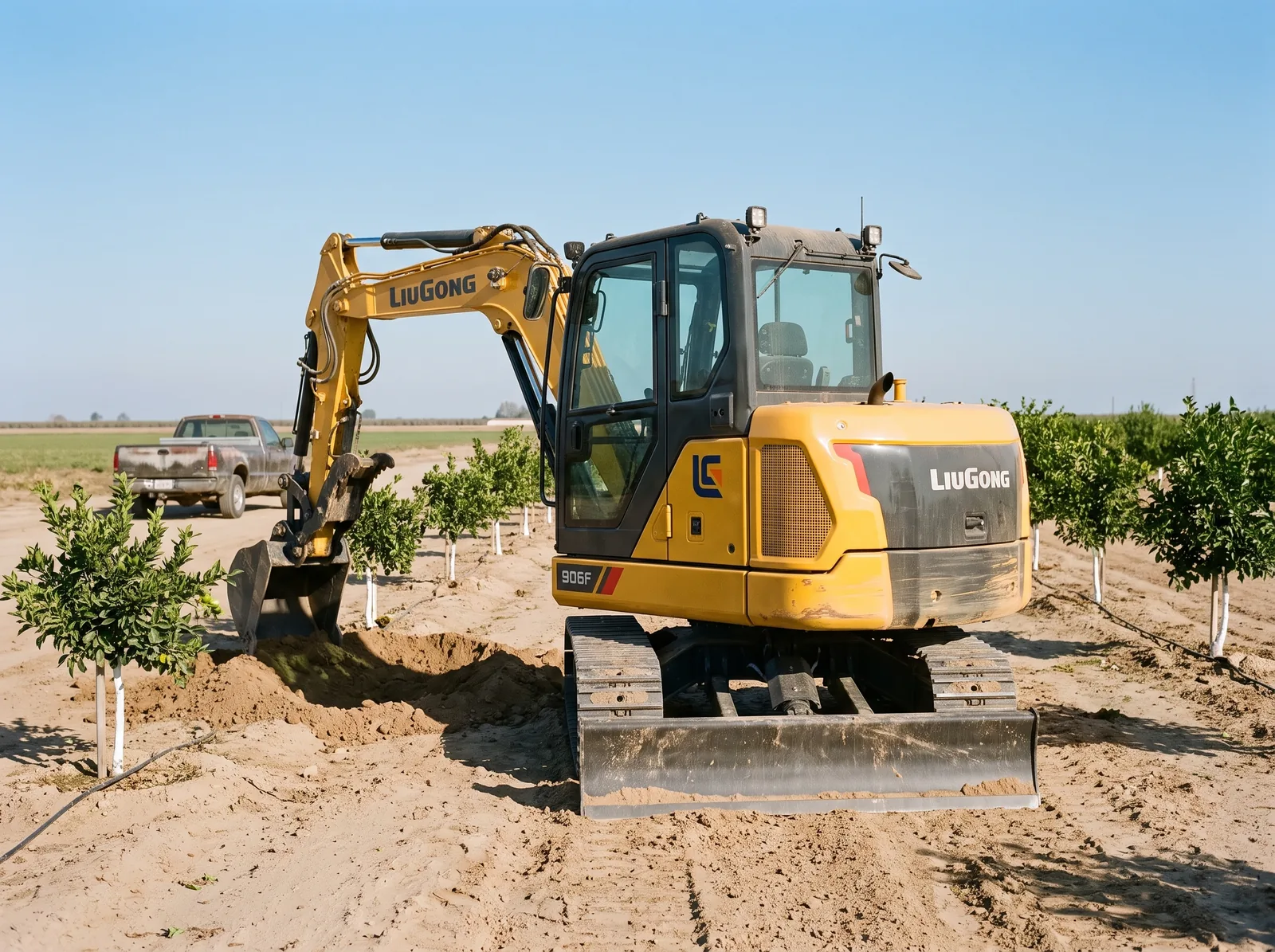

Where the 906F works.
400 mm track shoes and a 1,960 mm shipping width to work between planted rows.
Compare
Comparison.
The 906F beside other LiuGong models in the same line, with the figures LiuGong publishes for each one. Where the official page does not publish a figure, a dash is shown.
 | ||||||
|---|---|---|---|---|---|---|
| Operating weight | 5,900 kg | 5,900 kg | 13,500 kg | 13,800 kg | 21,500 kg | 22,000 kg |
| Power (kW) | 35.9 kW | 34.6 kW | 74 kW | 81 kW | 112 – 124 kW | 112 kW |
| Bucket | 0.21 m³ | 0.21 m³ | 0.36-0.58 m³ | 0.36 / 0.73 m³ | 0.9/0.95/1.0/1.2 m³ | 0.9 / 0.95 / 1.0 / 1.1 / 1.2 m³ |
