Yanmar engine
Equipped with a Yanmar engine that meets Stage III emissions, with strong power for its tonnage class.

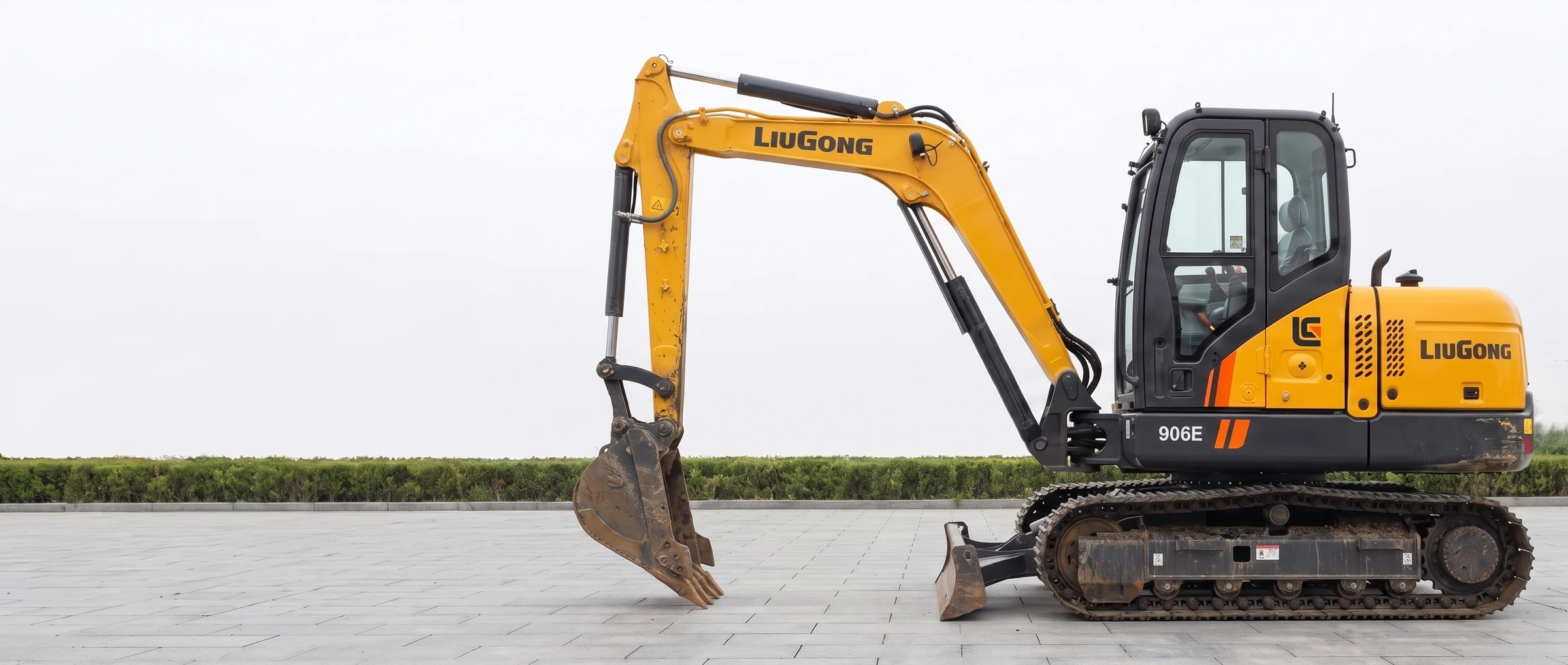

Compact hydraulic excavator 906E
The smallest machine in the range: 5,900 kg that gets through a garden gate and still digs 3,875 mm down.
- Operating weight
- 5,900kg
- Engine power
- 34.6kW
- Bucket
- 0.21m³
- Digging reach
- 6,250mm
Overview
The smallest in the range.

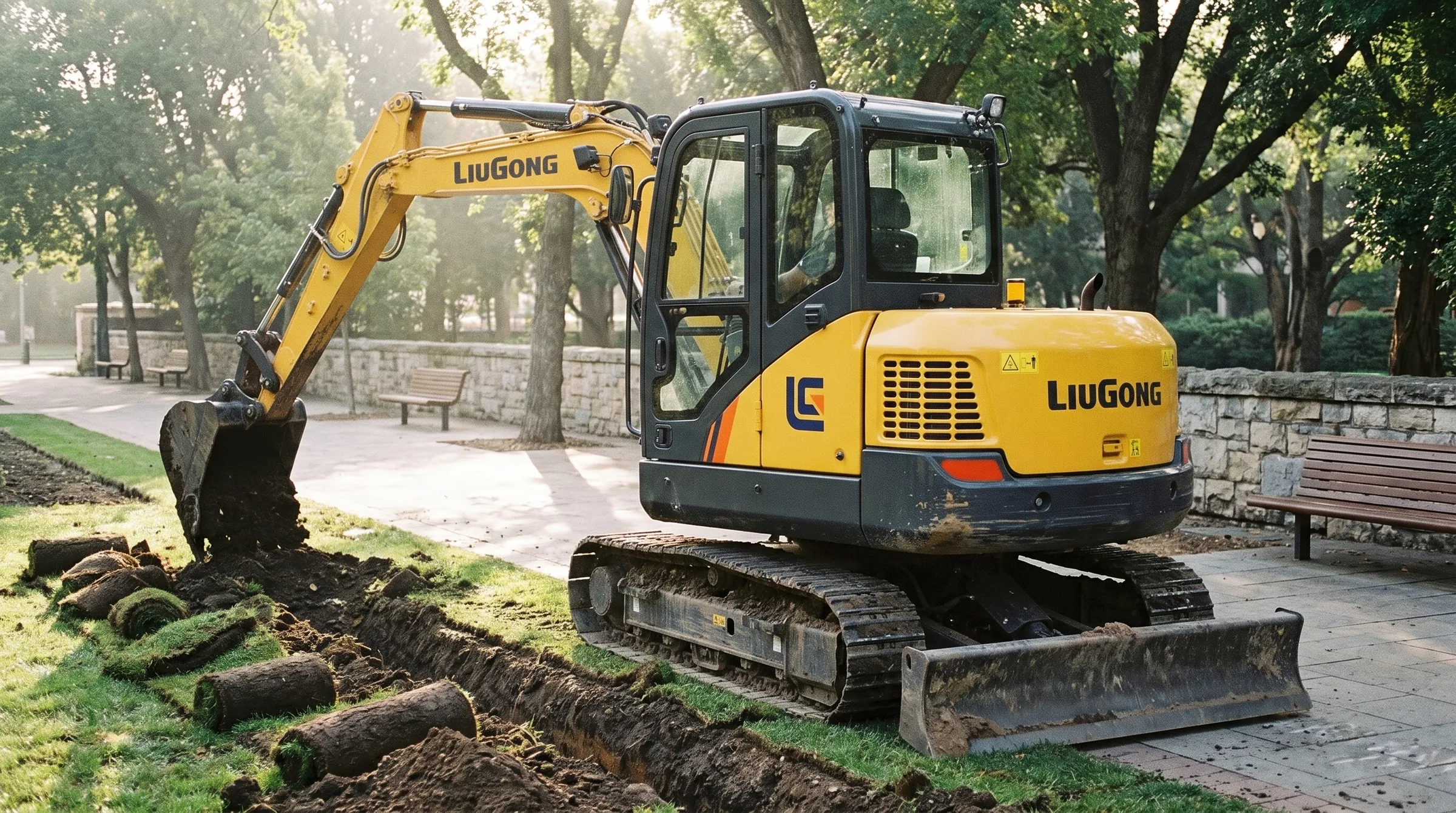

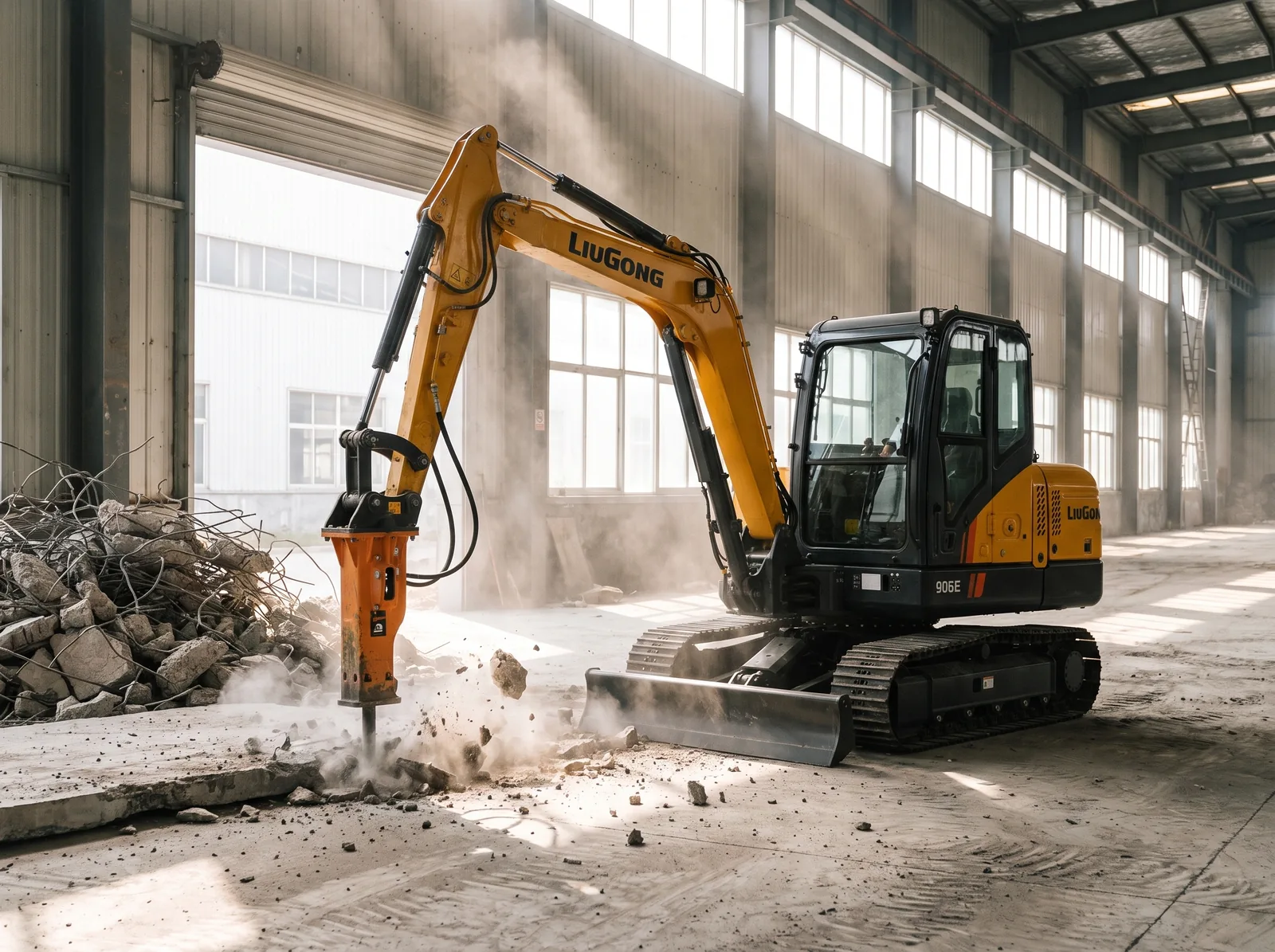

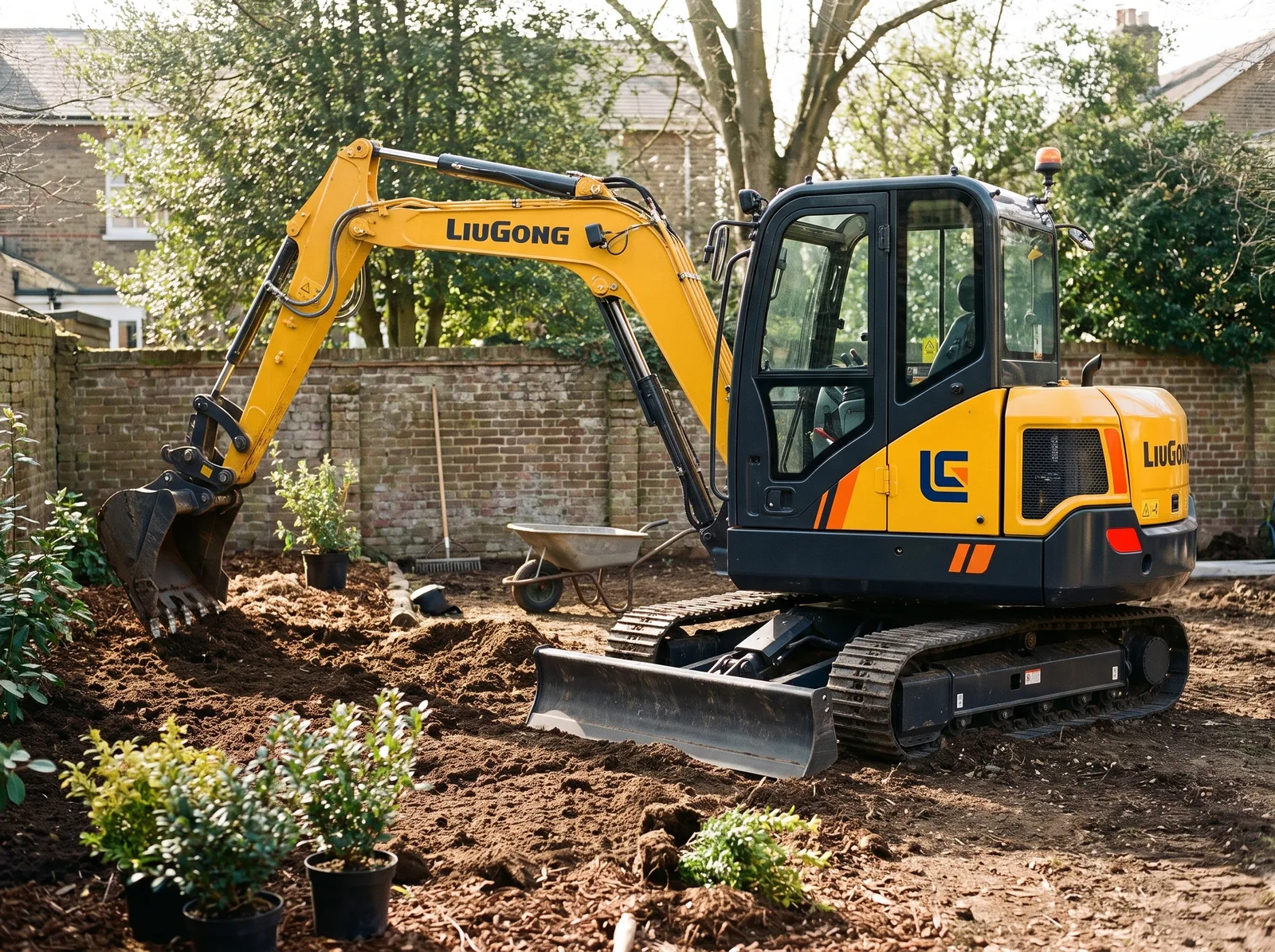

A compact excavator for landscaping, utilities and work inside buildings, where a bigger machine simply does not fit.
- Engine model
- Yanmar 4TNV94L-BVLY/BVLYC
- Emission
- EU Stage 3
- Bucket
- 0.21 m³
Main pump on demand
The main pump displacement is supplied to the system on demand and standby is automatically reduced.
Hydraulic system
System maximum flow of 142.8 L/min and system pressure of 25 MPa.
Working range
How far the 906E reaches.
3,000 mm boom and 1,600 mm arm.
- Digging reach on ground
- 6,065 mm
- Vertical wall digging depth
- 2,940 mm
- Minimum front swing radius
- 2,450 mm
Max. digging reach6,250mm
Max. cutting height5,790mm
Max. digging depth3,875mm
Specifications
Key specifications.
- Operating weight
- 5,900 kg
- Engine model
- Yanmar 4TNV94L-BVLY/BVLYC
- Engine power
- 34.6 kW (46 hp) @ 2,100 rpm
- Bucket capacity
- 0.21 m³
- Bucket breakout force
- 41 kN
- Arm breakout force
- 31 kN
- System maximum flow
- 142.8 L/min
- System pressure
- 25 MPa
Applications
01/ 02
Where the 906E works.
1,900 mm shipping width and 400 mm track shoes to work on finished ground without tearing it up.
Compare
Comparison.
The 906E beside other LiuGong models in the same line, with the figures LiuGong publishes for each one. Where the official page does not publish a figure, a dash is shown.
 | ||||||
|---|---|---|---|---|---|---|
| Operating weight | 5,900 kg | 5,900 kg | 13,500 kg | 13,800 kg | 21,500 kg | 22,000 kg |
| Power (kW) | 34.6 kW | 35.9 kW | 74 kW | 81 kW | 112 – 124 kW | 112 kW |
| Bucket | 0.21 m³ | 0.21 m³ | 0.36-0.58 m³ | 0.36 / 0.73 m³ | 0.9/0.95/1.0/1.2 m³ | 0.9 / 0.95 / 1.0 / 1.1 / 1.2 m³ |
